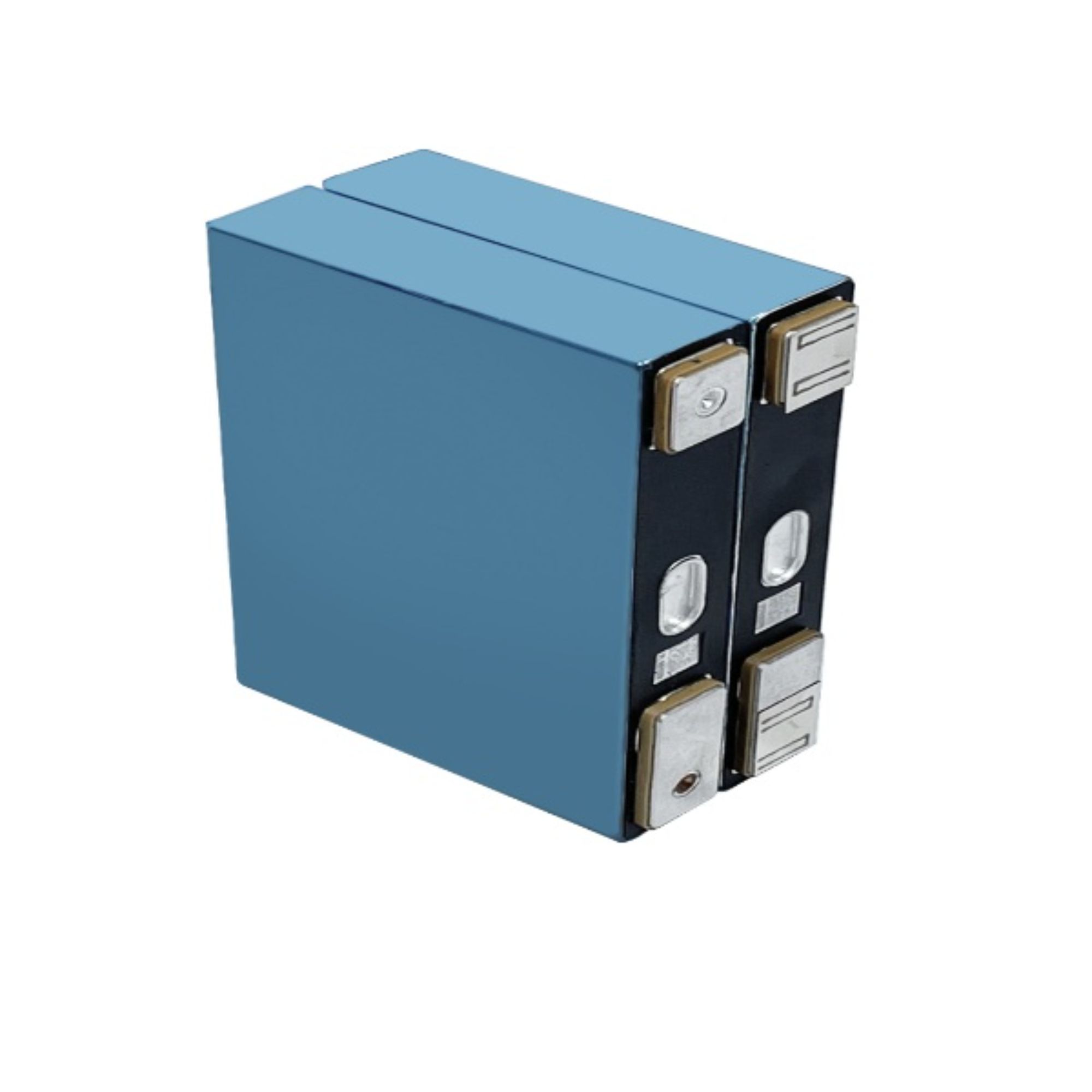

Lithium ion 3.7V 55Ah Lithium Prismatic Batteries Cell 2C continous 3C peak

Lithium ion 3.7V 55Ah Lithium Prismatic Batteries Cell 2C continous 3C peak

Battery Type: Lithium ion cell

Nominal voltage: 3.7V

Operational voltage: 2.5V – 4.25V

Nominal capacity: 55-60Ah

Impedance (1KHz): ≤0.64±0.05mΩ

Weight: 0.9±0.2kg

Fast charge current: 55A(1C)

Max. continous charge/discharge current: 55A(1C)

Peak current : 110A (2C)

Dimensions (mm): 27*148*101mm

Terminal: M6 Screw Hole

Cycle performance: ≥3000 Cycles

Charging temperature: 0℃~50℃

Discharging temperature: -20℃~55℃

Inquiry

Overview
Parameter
Inquiry
Related Products

(We also provide you bus bars and nuts if you neee. (Busbar material-copper, 1pcs 70AH battery ---1pcs busbar, 2pcs screws and 2pcs washers).
requirements about that, please let we know.
(3) These batteries wth certificates, such as CE, MSDS, UN, UL, if you need them, please contact us.

Compared to traditional AGM/lead acid batteries, LiFePO4 batteries (Lithium iron phosphate batteries) offer several advantages:

Higher safety and stability: LiFePO4 batteries are non-toxic, non-polluting, and do not contain rare earth metals. They are not prone to explosion or fire incidents.
Long service life: LiFePO4 batteries have a lifespan that is 10 times longer than traditional batteries, making them capable of enduring 2000-4500 cycles.
Lightweight: LiFePO4 batteries are approximately 1/4th the weight of lead-acid batteries, making them a more convenient and portable option.
Wide temperature range: The LFP battery can operate effectively in a broad temperature range from -20 to +75°C, allowing for reliable performance in various environments.
No memory effect: LiFePO4 batteries do not experience a memory effect, meaning they can be charged as needed without any loss of capacity.
Versatile applications: LiFePO4 batteries are suitable for a range of applications, including use in RVs, ships, home storage systems, and telecommunication base station batteries.

Nominal Voltage	3.2V
Minimal Capacity	55Ah
Std. Charge Current	27.5A (0.2C Rate)
Max. Charge Current	55A (1C Rate)
Continuous Discharge Current	1C (55A)
Peak Discharge Current	2C (110A)
Charge Cut-Off Voltage	4.25V
Discharge Cut-Off Voltage	2.5V
Inner Resistance	≤ 0.64mΩ (At 0.2C rate, 2.0V cut-off)
Weight	0.91kg
Dimension	Length: 27±0.5mm
	Width: 148±0.5mm
	Thickness: 101±0.5mm
Operating Temperature	Charging: 0°C ~ 55°C
	Discharging: -20°C ~ 45°C
	The cell surface temperature cannot exceed 70°C.
Storage Temperature / Humidify	Temperature: -10°C ~ +35°C
	Humidity: 65%±20%RH
	Optimal store temperature of 23 ± 5°C for long term storage.
Life Cycle	≥3000 times (100% DOD till 80% of initial capacity at 0.2C rate, IEC Standard)
