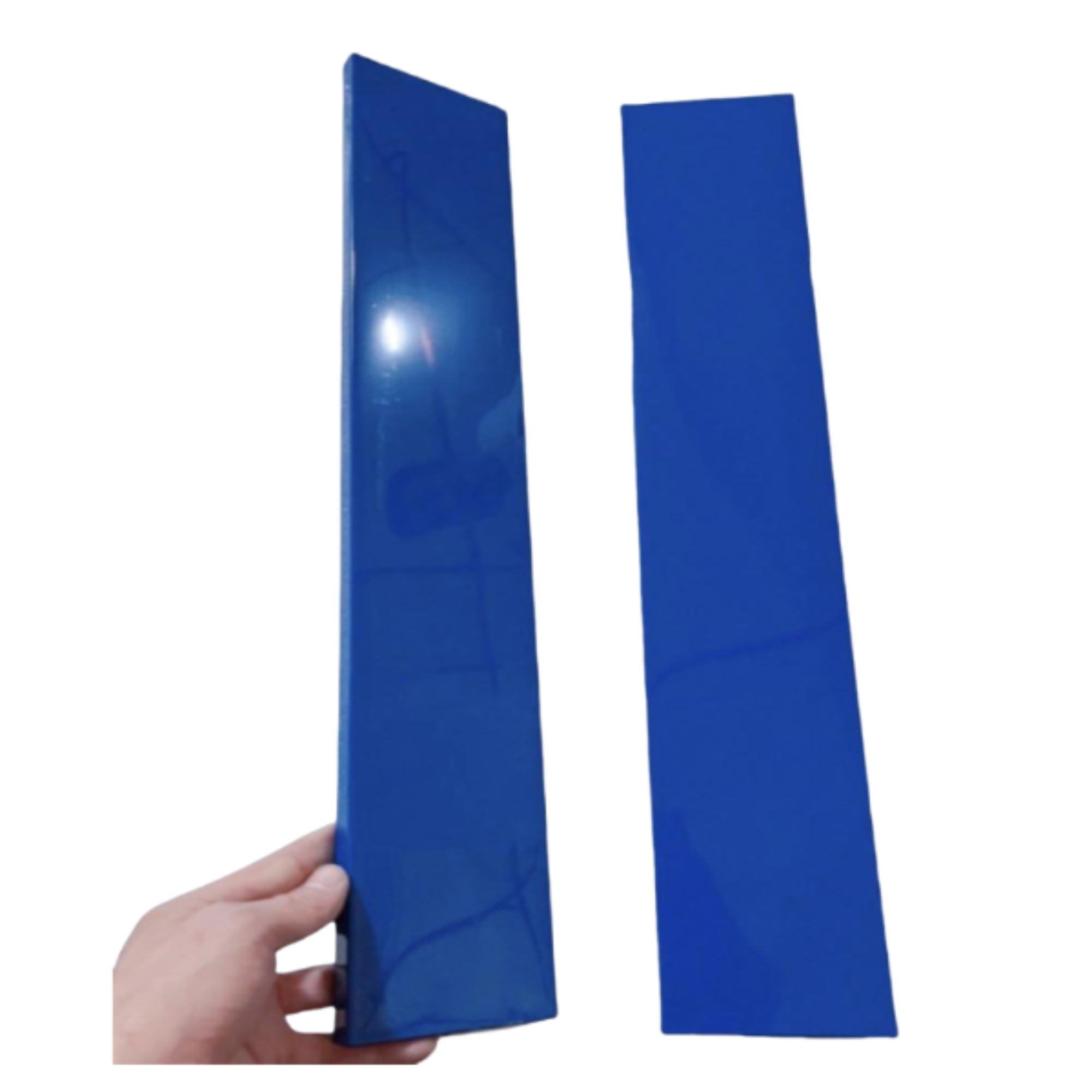

LFP Lithium Prismatic Svolt 3.2V 105Ah Blade LiFePO4 Battery Cell

LFP Lithium Prismatic Svolt 3.2V 105Ah Blade LiFePO4 Battery Cell

Voltage : 3.2V

Capacity :105Ah

Charge voltage :3.65V

Discharge cut-off voltage :2.0V

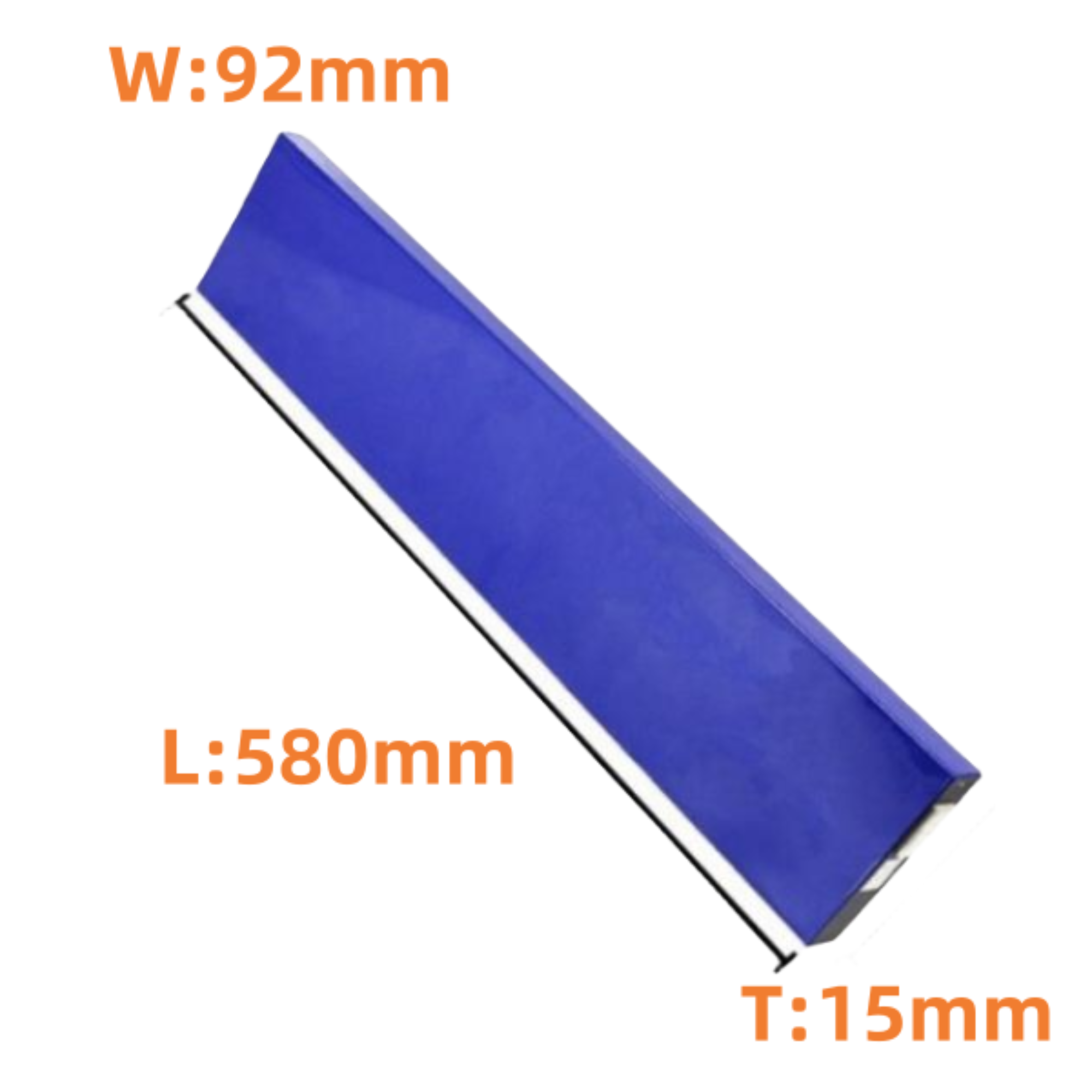

Size:L580*W92*T15mm

Weight :1.8kg±0.1kg

Self-discharge rate: ≤3%

Charge temperature：0℃ ~ 45℃
Discharge temperature：-20~55°

Inquiry

Overview
Parameter
Inquiry
Related Products

Compared to traditional AGM/lead acid batteries, LiFePO4 batteries (Lithium iron phosphate batteries) offer several advantages:

Higher safety and stability: LiFePO4 batteries are non-toxic, non-polluting, and do not contain rare earth metals. They are not prone to explosion or fire incidents.
Long service life: LiFePO4 batteries have a lifespan that is 10 times longer than traditional batteries, making them capable of enduring 6000-8000 cycles.
Lightweight: LiFePO4 batteries are approximately 1/4th the weight of lead-acid batteries, making them a more convenient and portable option.
Wide temperature range: The LFP battery can operate effectively in a broad temperature range from -20 to +75°C, allowing for reliable performance in various environments.
No memory effect: LiFePO4 batteries do not experience a memory effect, meaning they can be charged as needed without any loss of capacity.
Versatile applications: LiFePO4 batteries are suitable for a range of applications, including use in RVs, ships, home storage systems, and telecommunication base station batteries.

FAQ

1. Are you factory or trade company?

We are professional manufacturer in lithium battery field,with professional research and
development team and also provide the single lifepo4 cells with Original QR code .

2.What is your main product?
•Deep cycle LiFePo4/NMC batteries, 12V-96V LiFepo4 3-400A optional;
•Start-stop LiFepo4 12V 200CCA-1600CCA
•1-32S Lithium PCM/BMS max 250A
•NMC/LFP/LTO cells

3.How to proceed with an order?
Let us know your requirement or application---We quote according to your requirements or our suggestions---Customer confirms the samples and place a deposit for formal order---We arrange the production---We arrange to ship out.

All process ,we will provide you professional and timely after-sales service

4.Do you accept OEM?
Yes, we have professional experience for OEM.

5.Can you make a label for us ?

yes ,please contact us ...

6. Do you have any certification ?

Yes ,we have CE and UN38.3 ,MSDS

Item	Parameter
Nominal Capacity	105Ah
Minimal Capacity	107Ah
Work Voltage	2.5~3.65V
Internal Resistance（Ac. 1kHz）	0.1~0.5mΩ
Charging Time	Standard Charge: ~4h
Charging Time	Fast Charge: ~1h
Recommended SOC Window	SOC: 10%~90%
Max. Constant Discharging Current	105A
Max. Constant Discharging Current（Long Pulse）	250A (3min)
Maximum Pulse Discharging Current（Short Pulse）	300A (30s)
Recommended SOC Window	10%~90%
Operating Temperature	Charging: 0~45°C Discharging: -20~55°C
Weight	1.8±0.1kg
Shell Material	Aluminium
Cycle Life	≥3000 cycles
